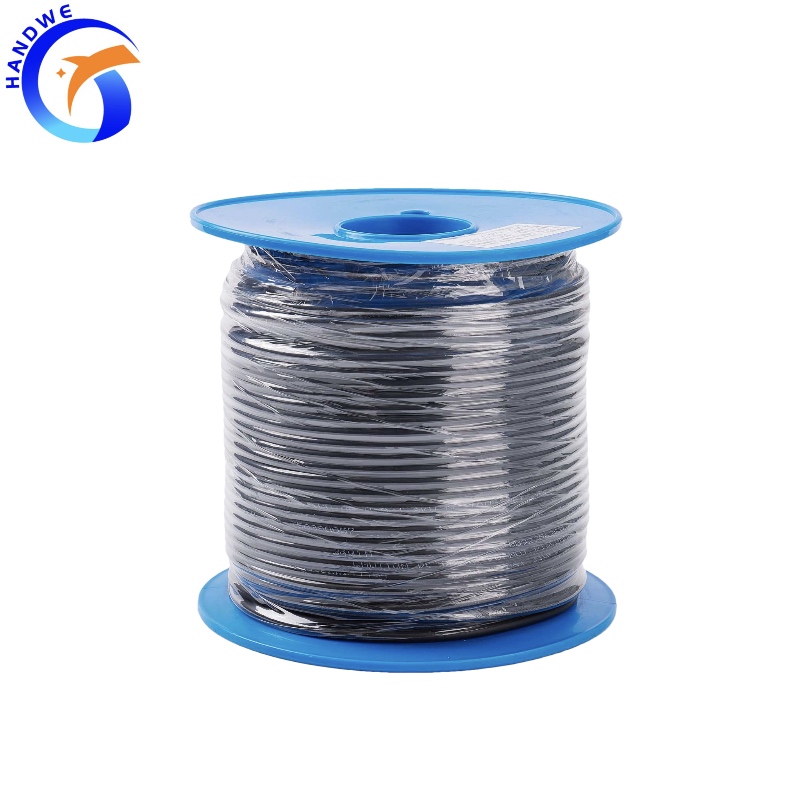

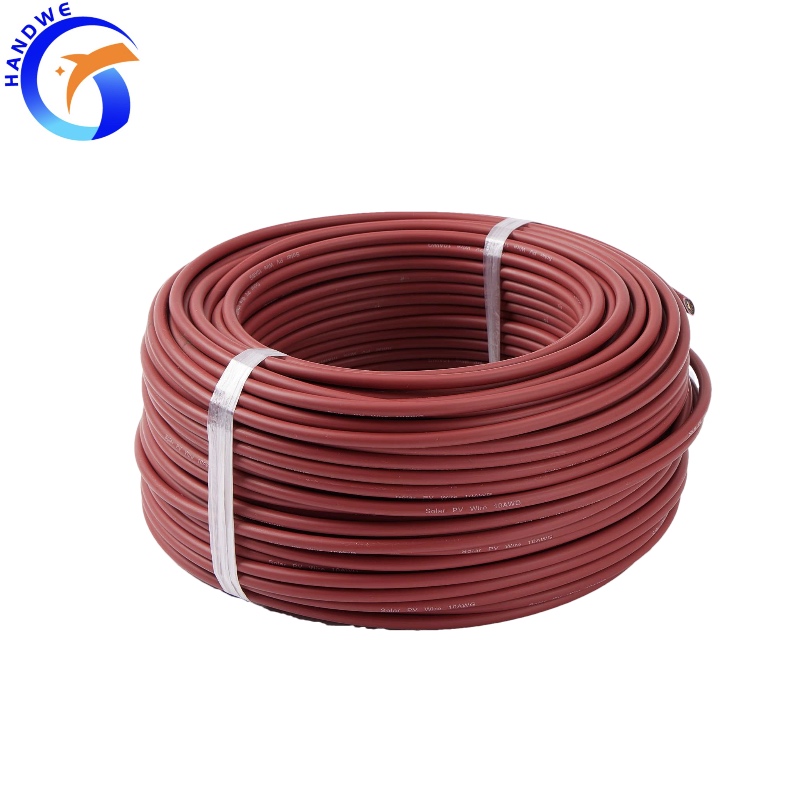

ul solar cable by drum 100meters

Release time:2022-01-20 20:50:38Pageviews:375

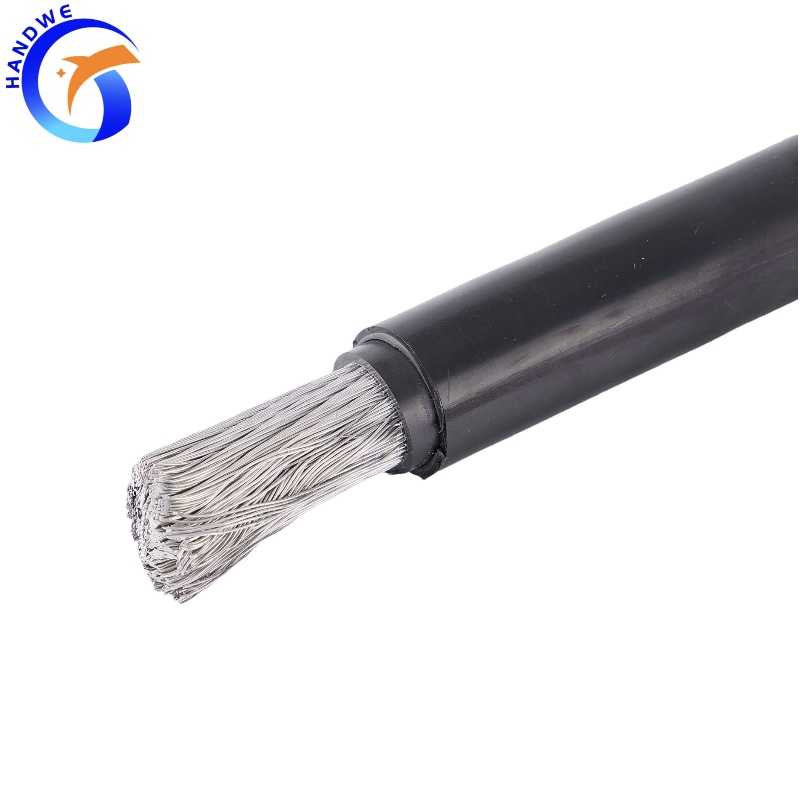

ul solar cable by drum 100meters Cable feature as

l Halogen Free,Flame Retardant,ROHS

l 25 Years of Production Experience In Power Cable

l TUV & UL Approved

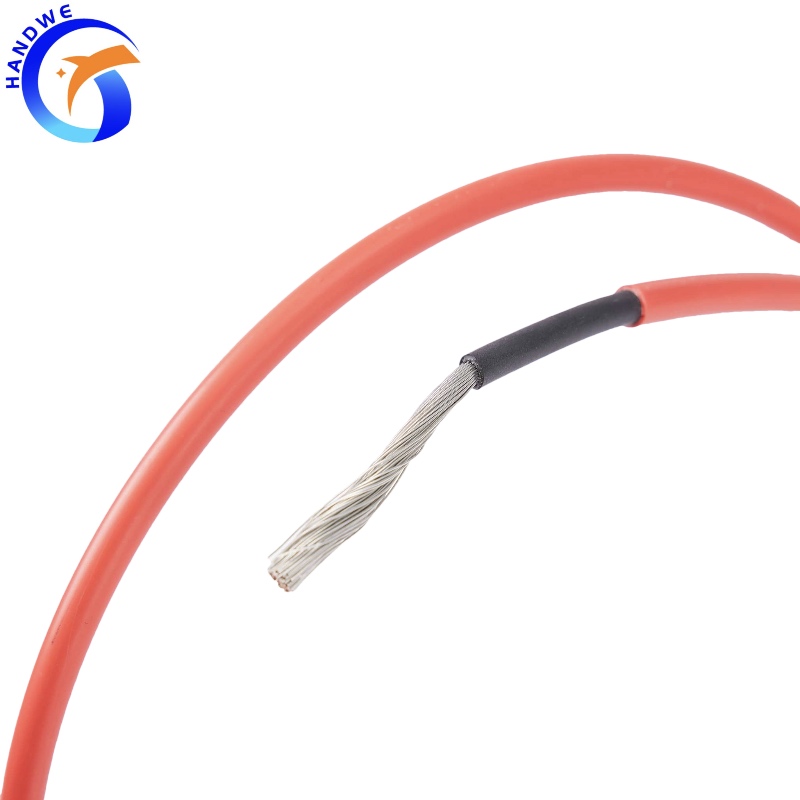

l Double Insulation Suitable for outdoor harsh environments

l Stable connection & Reducing maintenance cost

l suitable for outdoor extreme environments, UV, ozone, hydrolysis resistant

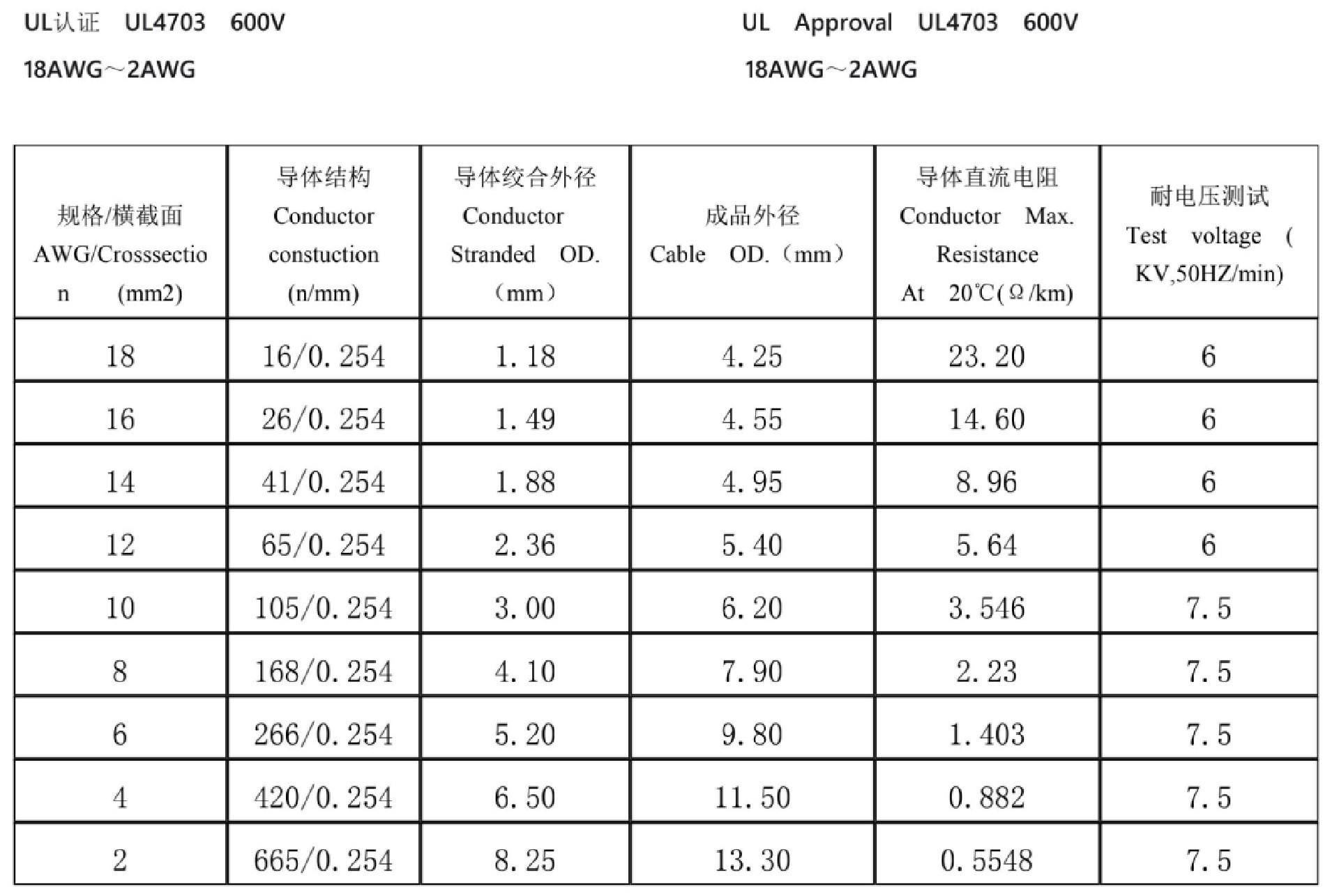

ul solar cable by drum 100meters UL4703 600V Solar Cable Sizes

ul solar cable by drum 100meters 600v spec





ul solar cable by drum 100meters UL4703 600V cable technical as

l Nominal voltage(U):600VAC

l Test voltage(U0):U=600V

l 18~10AWG,U0=3000V,50HZ,1Min

l 8~2AWG,U0=3.5KV,50HZ,1Min

l Conductor maximum temperature:+120°C

l Ambient temperature:–40°C up to+90°C

l Relative permitting:UL854

l Cold bend test:UL854

l Sunlight resistance:UL2556

l Fire test:UL1581 VW-1

l Heat distortion test:UL1581-560(121±2×1h,2000g,≤50%

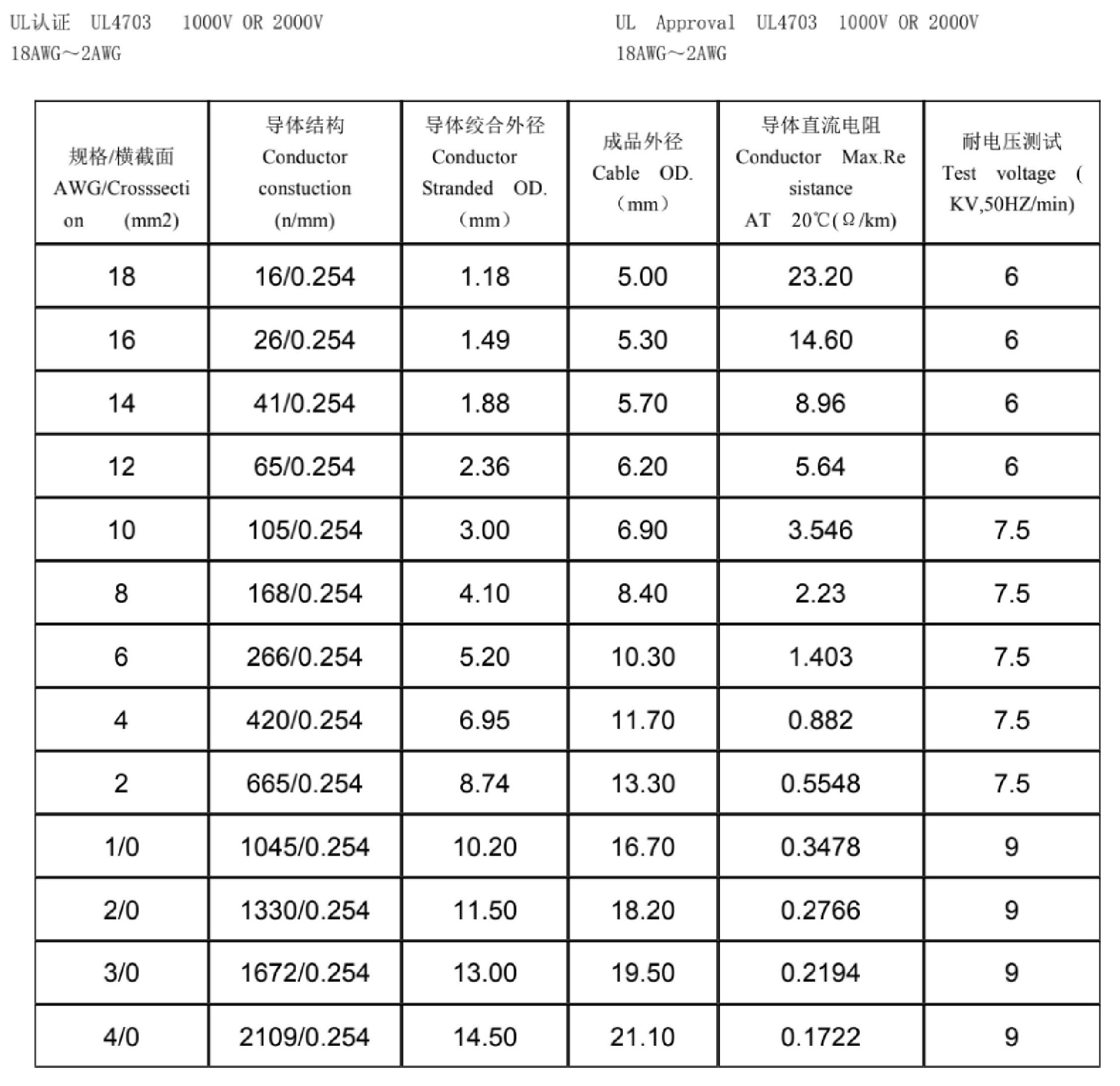

ul solar cable by drum 100meters UL4703 1000V/2000V Solar Cable  Sizes

ul solar cable by drum 100meters 1000v spec



ul solar cable by drum 100meters UL4703 1000V/2000V cable technical as

l Nominal voltage(U):1000 OR 2000VAC

l Test voltage(U0):U=1000V,2000V

l 18~10AWG,U0=6000V,50HZ,1Min

l 8~2AWG,U0=7.5KV,50HZ,1Min

l 1/0~4/0AWG,UO=9.0KV,50HZ,1Min

l Conductor maximum temperature:+120°C

l Ambient temperature:–40°C up to+90°C

l Relative permitting:UL854

l Cold bend test:UL854

l Sunlight resistance:UL2556

l Fire test:UL1581 VW-1

l Heat distortion test:UL1581-560(121±2×1h,2000g,≤50%

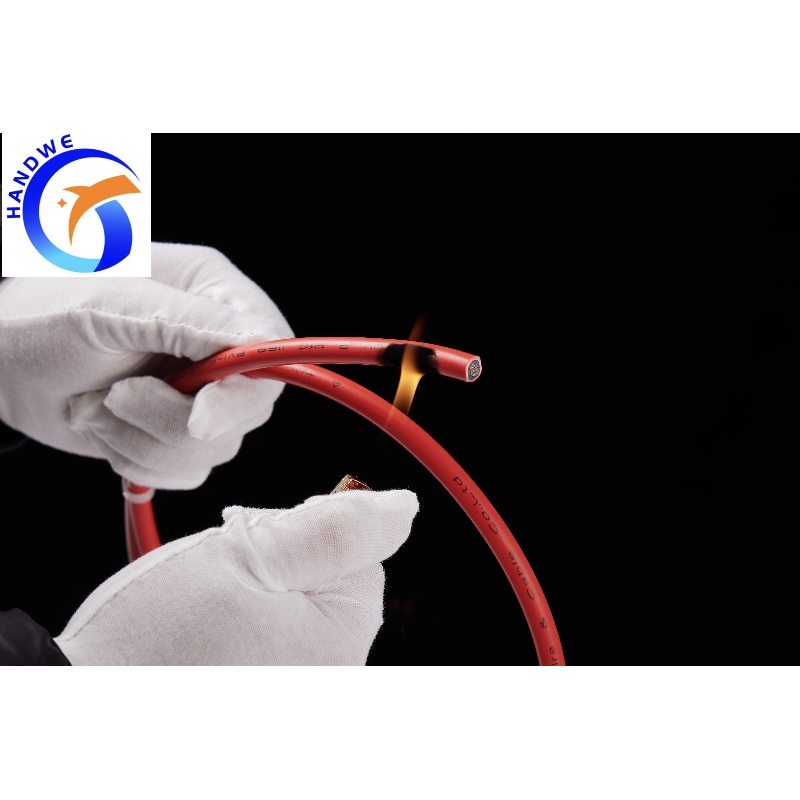

ul solar cable by drum 100meters vw-1
