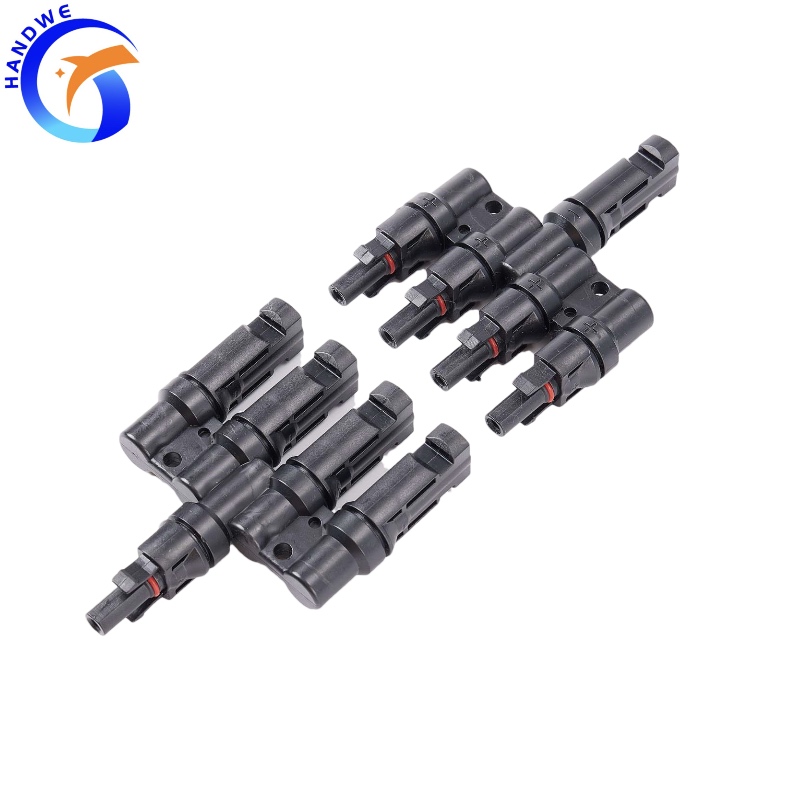

4 to 1 solar branch connector

Release time:2019-01-09 00:51:54Pageviews:492

4 to 1 solar branch connector Main feature:

1.With excellent aging resistance and UV endurance.

2.It can be used in harsh environment.

3.It does not need extra instruments for the removal of plugs

4.Removal will not cause any harm to plugs.

5.Load applicability with big current and high voltage

6.Good ability of resistance and machine shocking

7.Lower contact resistance

8.Created seal ,design of water proof and dust proof

9.Eligible plastic material has marvelous performances of high low temperature,

fireproof, anti-Ultraviolet rays and applied to the long-time operation outside.


4 to 1 solar branch connector Technical data:

Trademark:  Handwe

Model No.:  HW-4 to 1

Standard:  EN 50521 & UL 6703

Insulation material:  PPO

Rated current:  30A

Rated voltage:  1000V(TUV) 600V(UL)

Test voltage:  8KV(50Hz,1Min)

Contact material:  Copper,Tin plated

Contact resistance:  ≤0.5mΩ

Protection degree:  IP67 & IP68

Safety class:  Ⅱ

Flame class:  UL94-V0

Insertion force:  ≤50N

Withdrawal force:  ≥50N

Ambient temperature range:  -40℃~+90℃

Pin dimensions:  φ4.0mm

Suitable cable:  2.5~6.0mm2 AWG14/12/10


4 to 1 solar branch connector Package:

1.80pairs in a carton

2.carton dimension:38cm*29cm*47cm

3.Net weight:20kg

4.Gross weight:21kg
