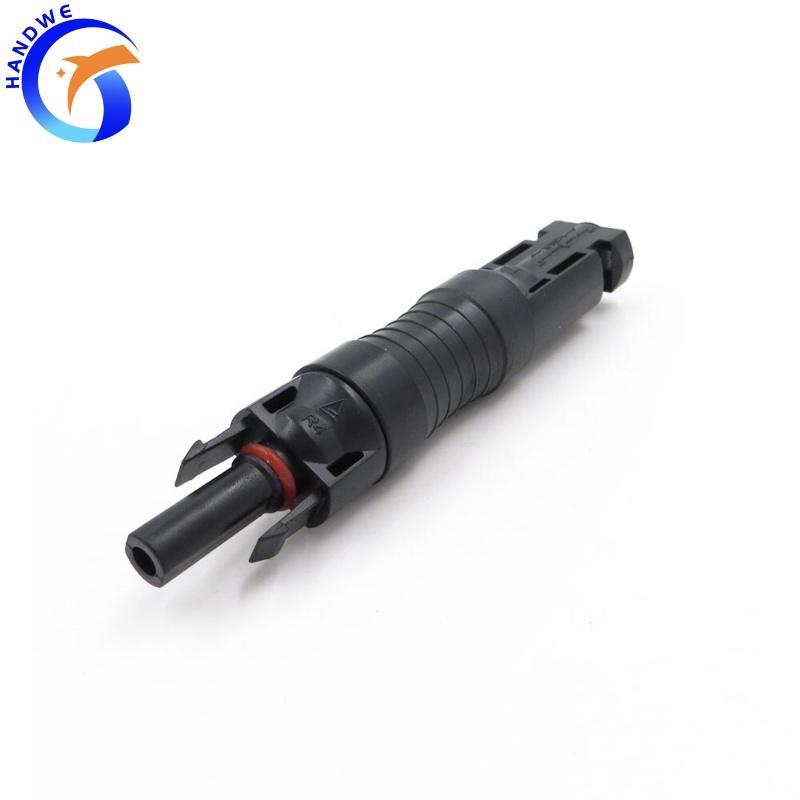

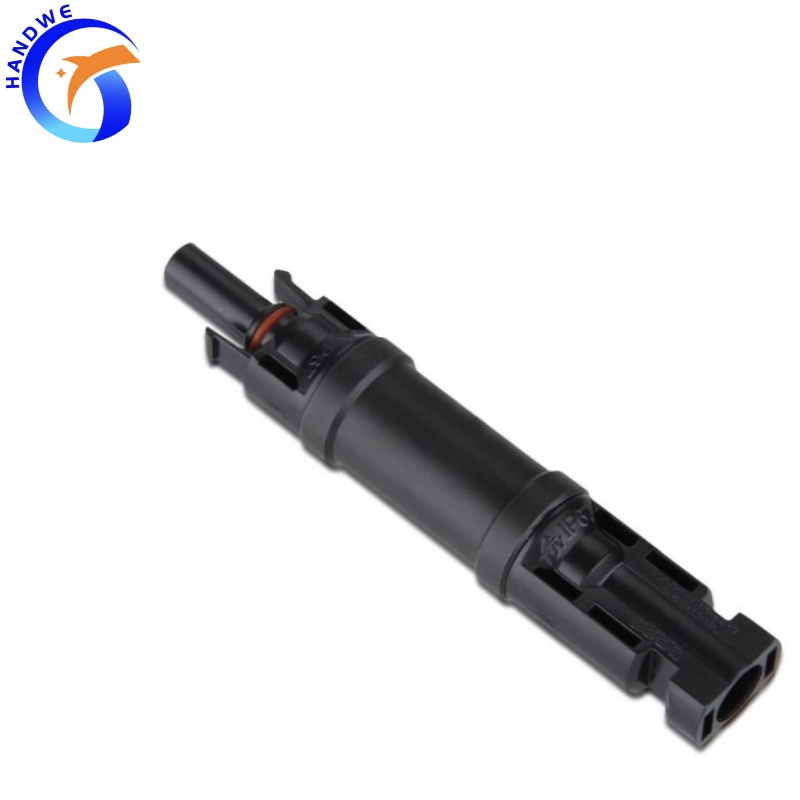

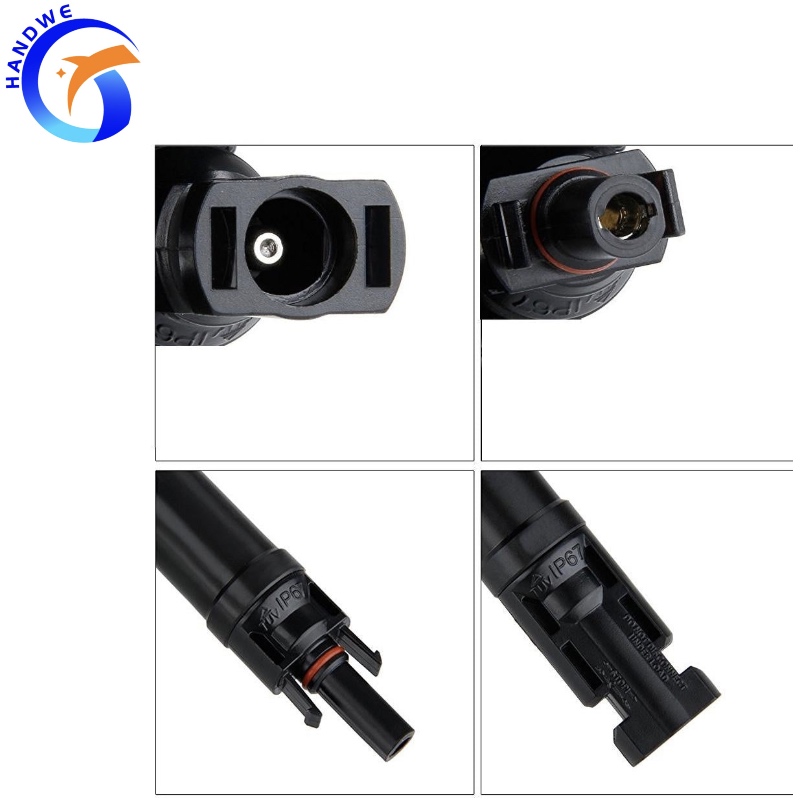

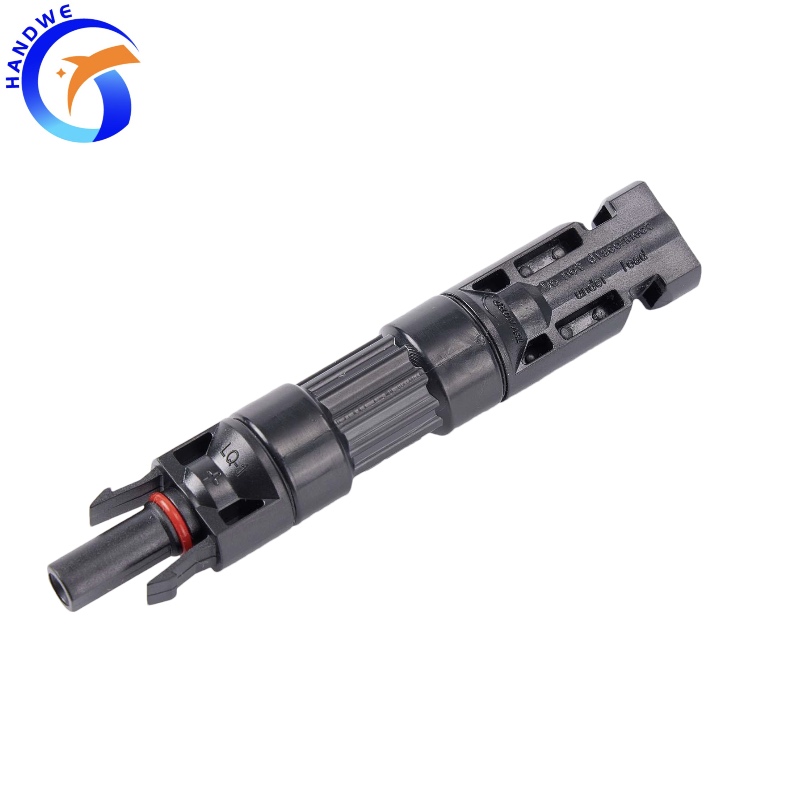

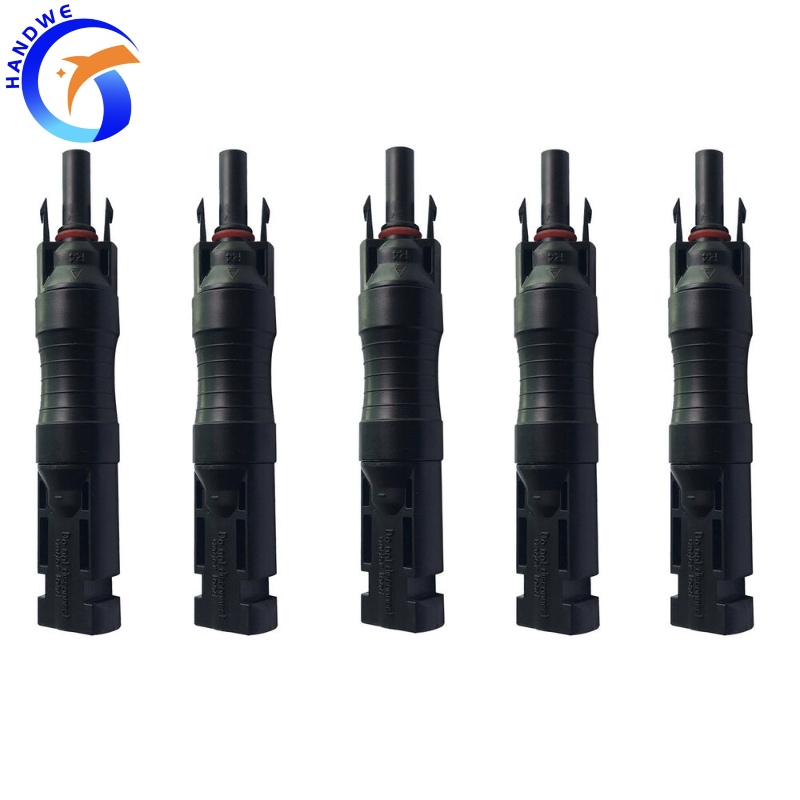

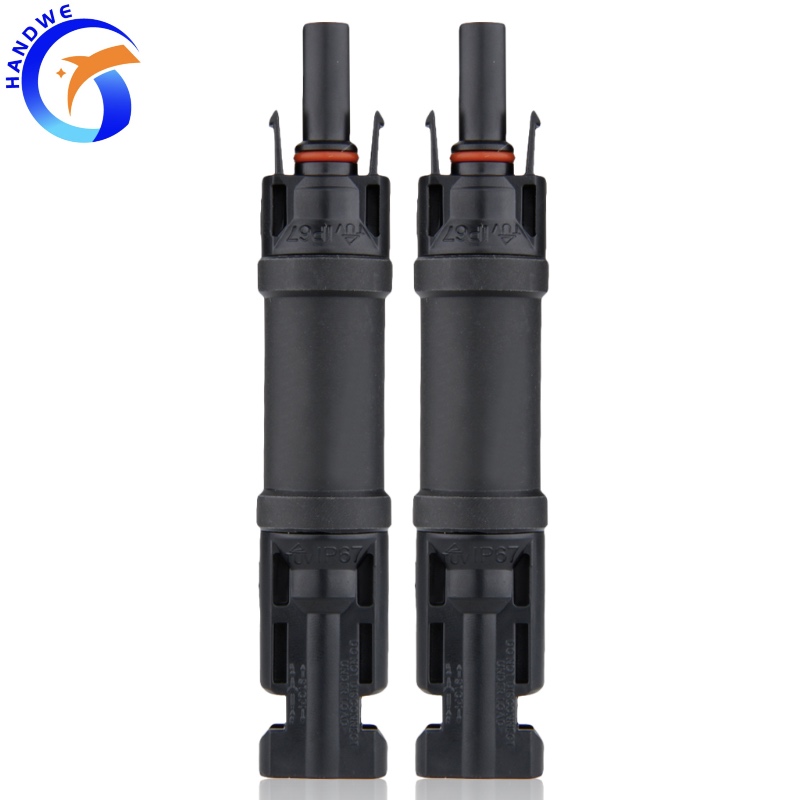

15A 10A PV Diode MC4 Connector IP68 Waterproof

Release time:2022-01-20 13:49:32Pageviews:262

15A 10A PV Diode MC4 Connector IP68 Waterproof main feature:

1.Connector adopts touch and insertion of reed with inner-knob type.

2.Auto-lock equipment of male and female points enable connection more easy and reliable.

3.Popular figure suit most of field installation

4.Simple on-site processing

5.Mating safety provided by keyed housings

6.Multiple plugging and unplugging cycles

7.Accommodate PV cable with different insulation diameters

8.High current carrying capacity



15A 10A PV Diode MC4 Connector IP68 Waterproof Technical data:

Subject:  Product Detailed Information

Type of appliance:  PV Component Connector

Trademark:  Handwe

Model No.:  HW-MC4 Diode

Standard:  EN 50521: 2008

Insulation material:  PPE

Rated current:  10A-15A ( Diode), 20-30A MC4 Pins

Rated voltage:  1500V DC

Test voltage:  8kV(50Hz, 1 min)

Contact resistance:  <0.5mΩ

Contact material:  Copper Tin plated

Degree of protection:  IP68

Safety class:  II

Flame class:  UL94-V0

Insertion force:  Max. 50N

Withdrawal force:  Min. 50N

Ambient temperature range:  40.. +85(IEC)



15A 10A PV Diode MC4 Connector IP68 Waterproof Package:

1.200pairs in a carton

2.carton dimension:38cmx33cmx47cm

3.net weight:22kg

4.Gross weight:23kg
