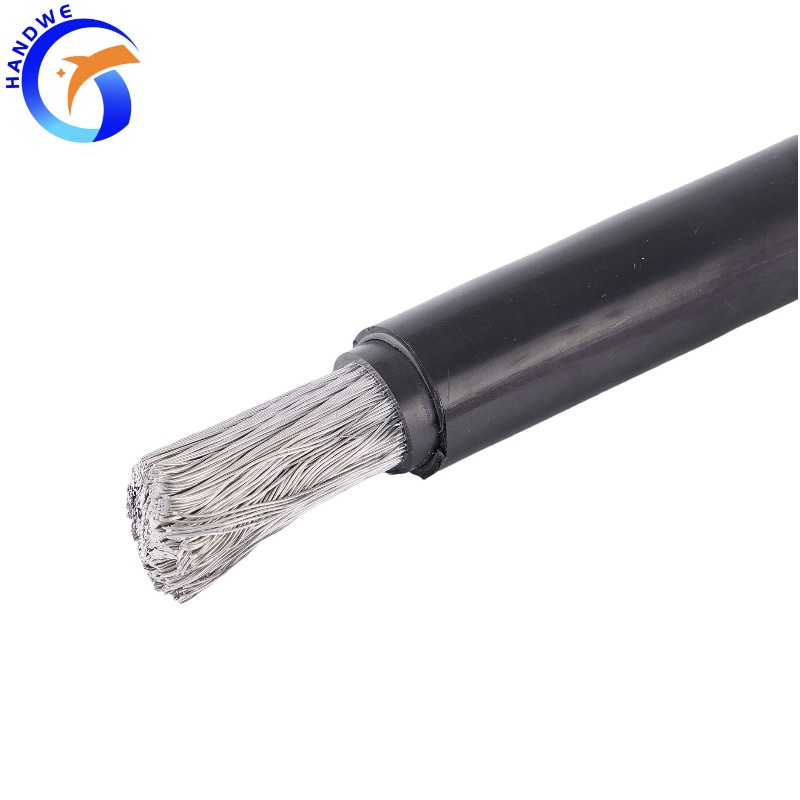

tinned copper solar cable

Release time:2022-01-20 16:40:07Pageviews:287

tinned copper solar cable Cable feature as

l Halogen Free,Flame Retardant,ROHS

l 25 Years of Production Experience In Power Cable

l TUV & UL Approved

l Double Insulation Suitable for outdoor harsh environments

l Stable connection & Reducing maintenance cost

l suitable for outdoor extreme environments, UV, ozone, hydrolysis resistant

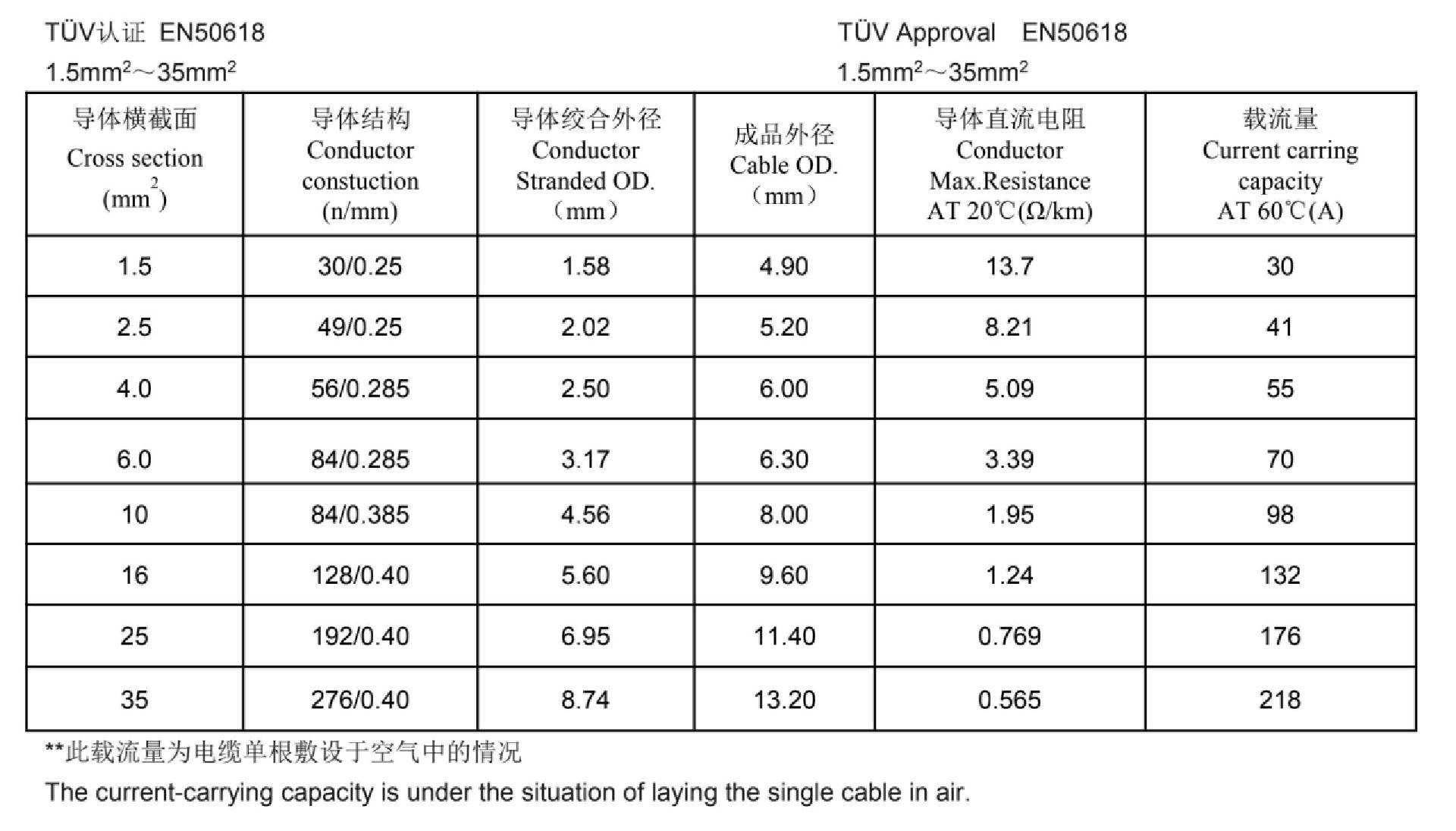

tinned copper solar cable EN 50618 Solar Cable Sizes

tinned copper solar cable EN50618 sizes

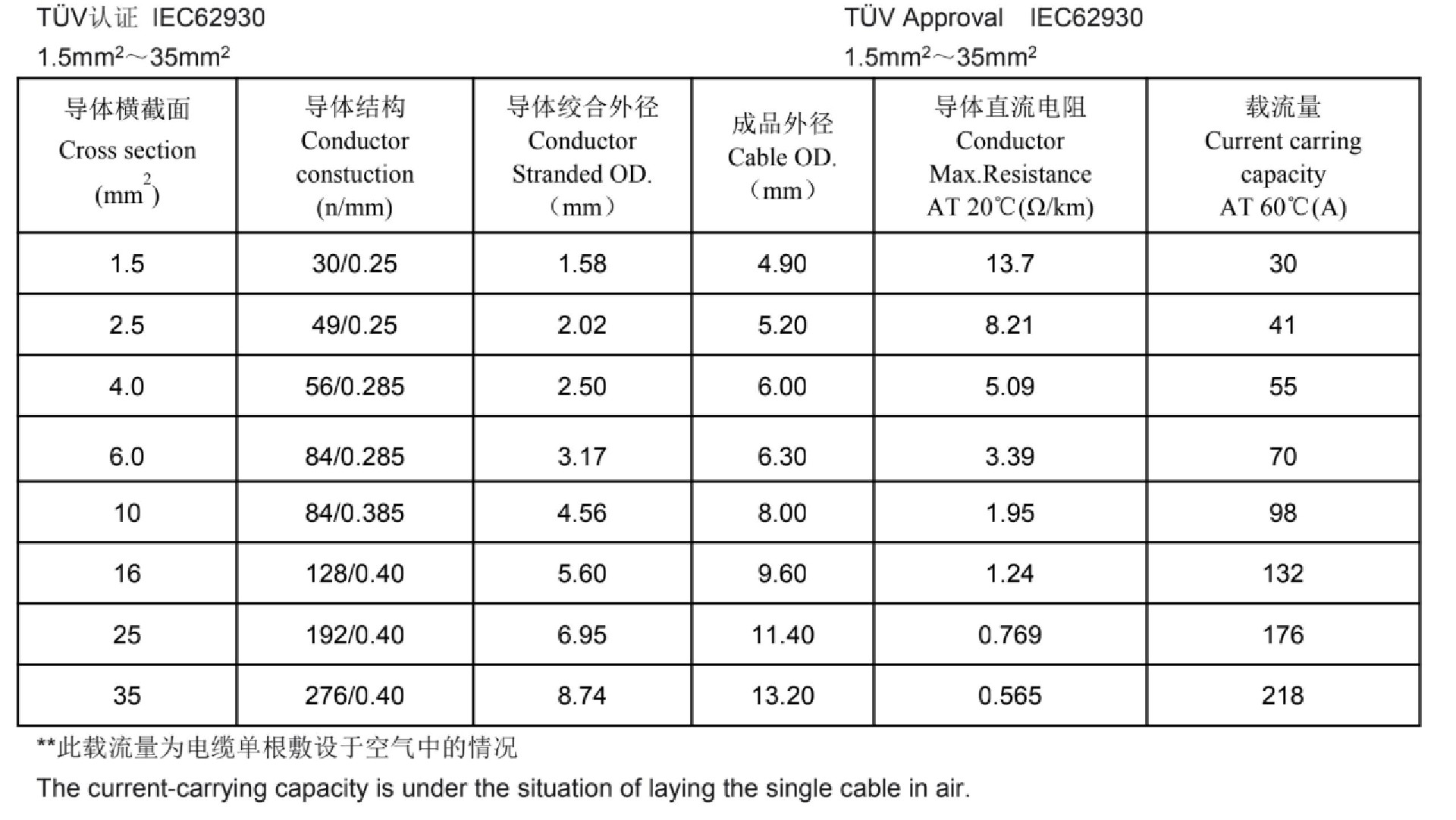

tinned copper solar cable IEC62930 Solar Cable Sizes

tinned copper solar cable IEC62930 sizes



tinned copper solar cable EN 50618 cable technical as

l Voltage test on completed cable:6.5kVAC,15kVDC,5min

l Ambient temperature:–40°C up to+90°C

l Max.Temperature at conductor:+120°C

l The expected period of use is 25years(Ambient temperature:–40°C up to+90°C)

l The permitted short-circuit-temperature refer to a period of 5s is+200°C

l Bending radius:≥4×φD8mm;≥6×φD≥8mm

l Resistance against acid and alkaline solution:EN60811-2-1

l Cold bending test:EN60811-1-4

l Weathering/UV-resistance:HD605/A1

l O-zone resistance at complete cable:EN50396

l Fire test:IEC60332-1Smoke density:IEC61034EN50268-2

l Content of halogen acid gas:IEC670754-1EN50267-2-1

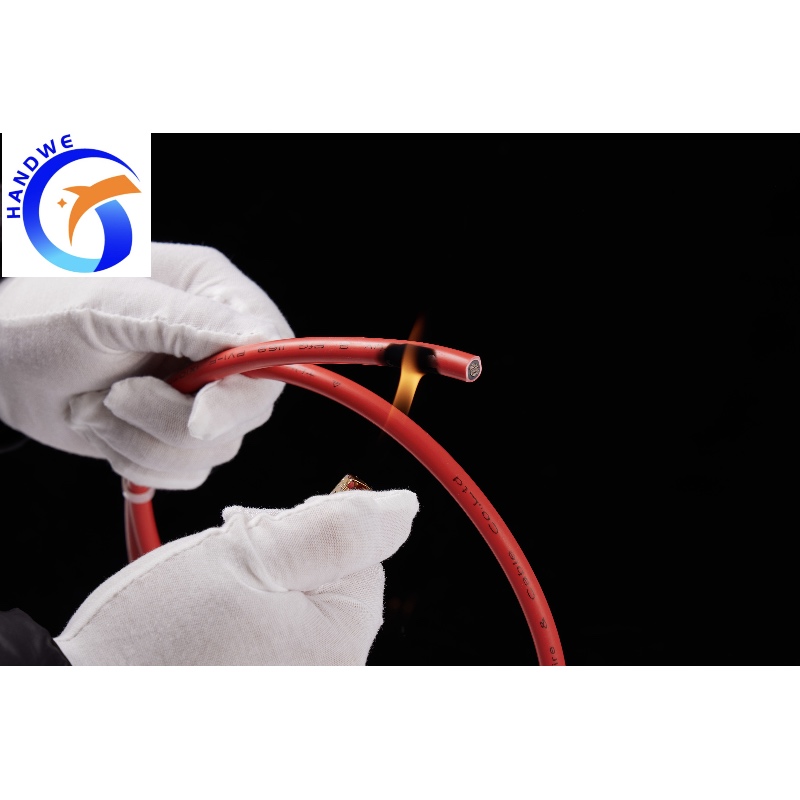

tinned copper solar cable fire retargent
